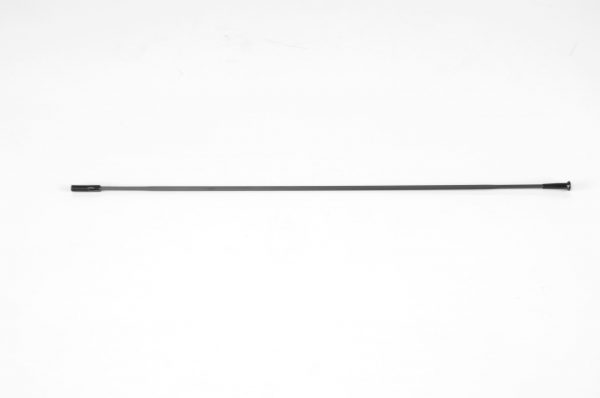

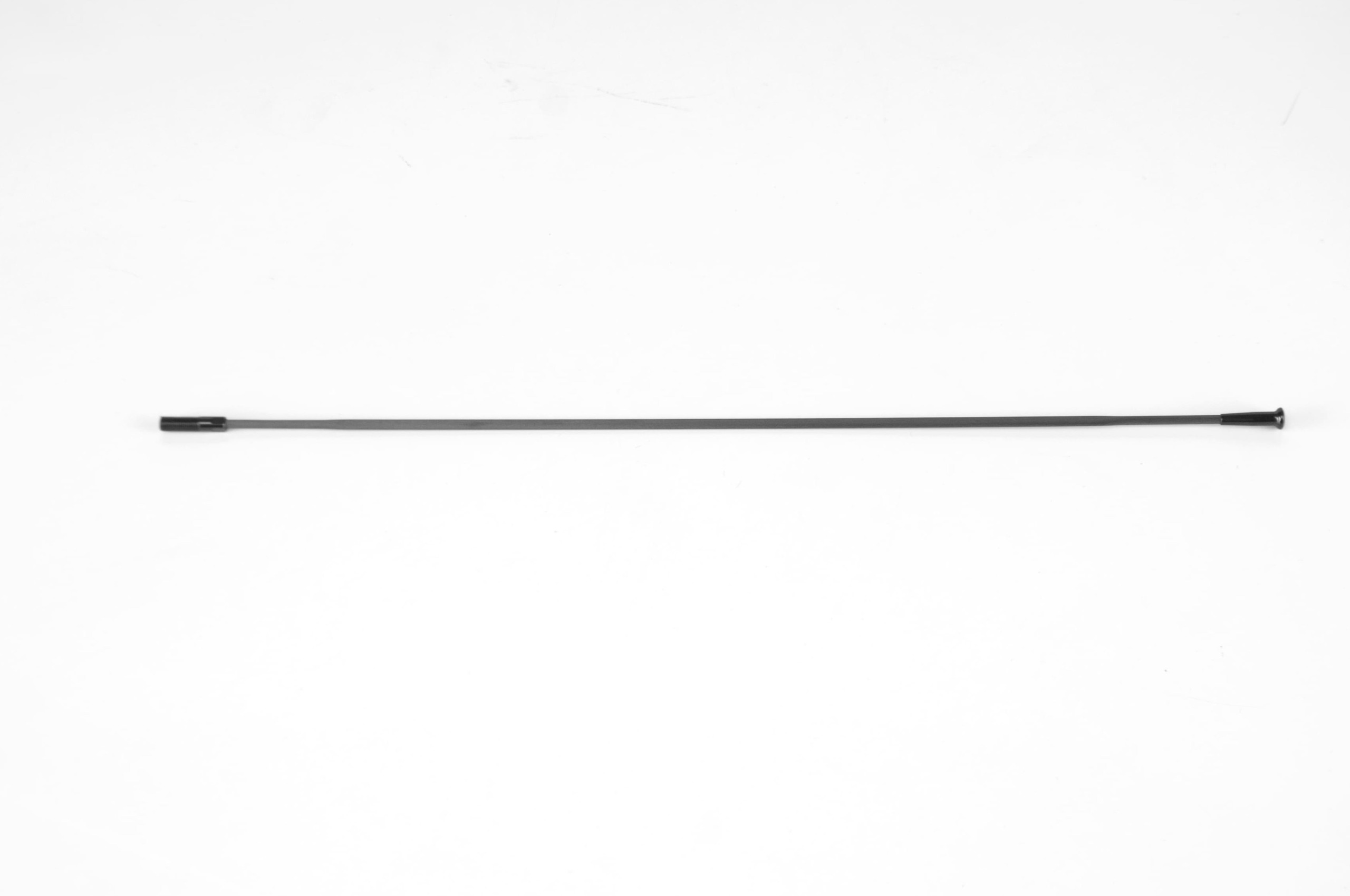

- Carbon spoke with titanium head and thread

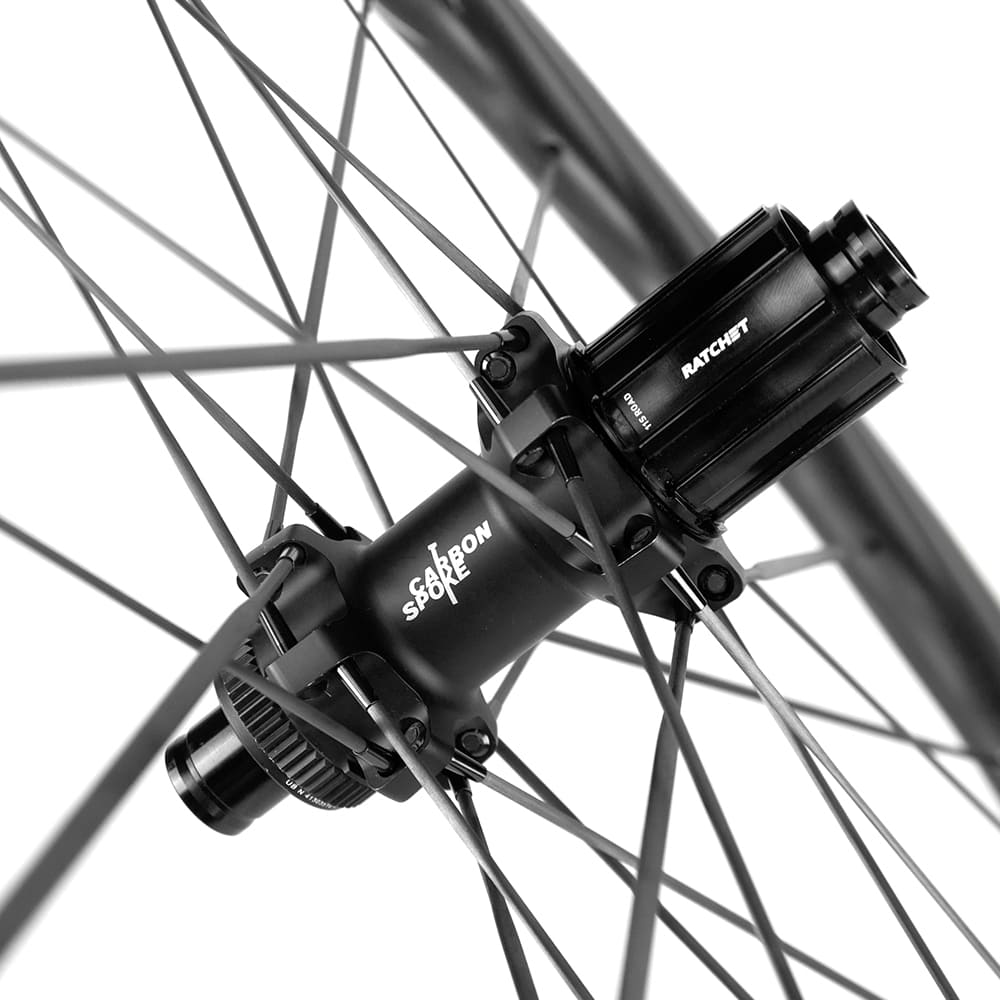

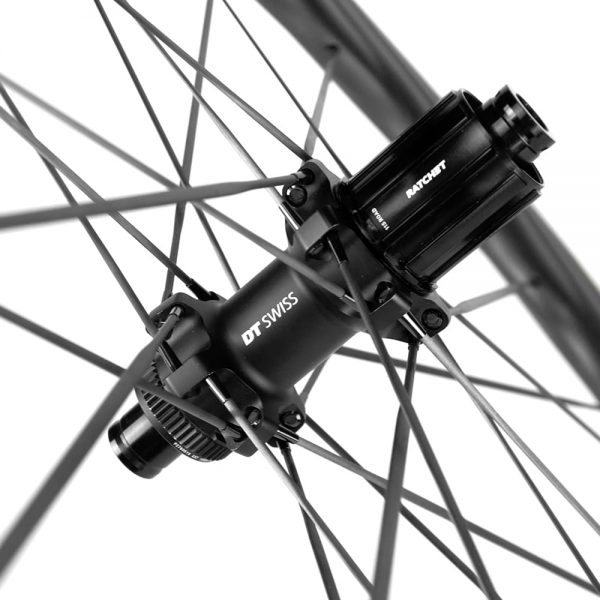

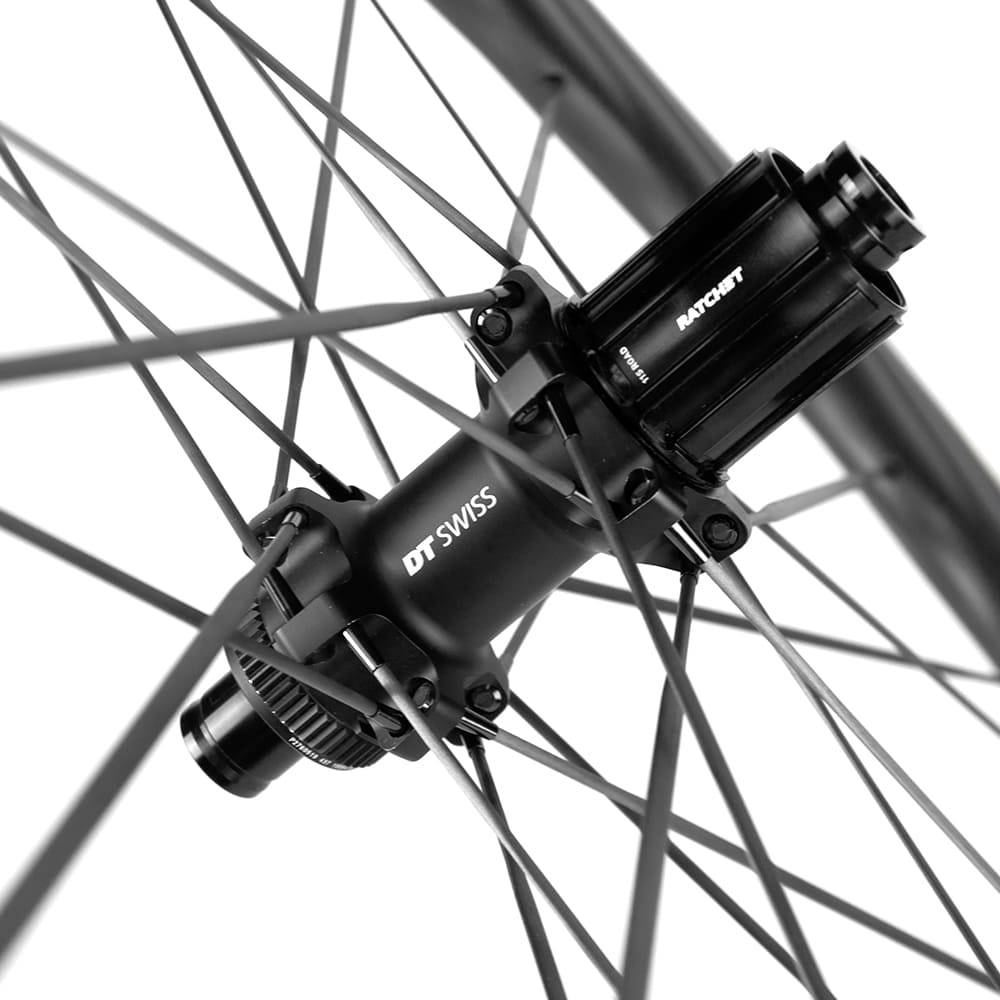

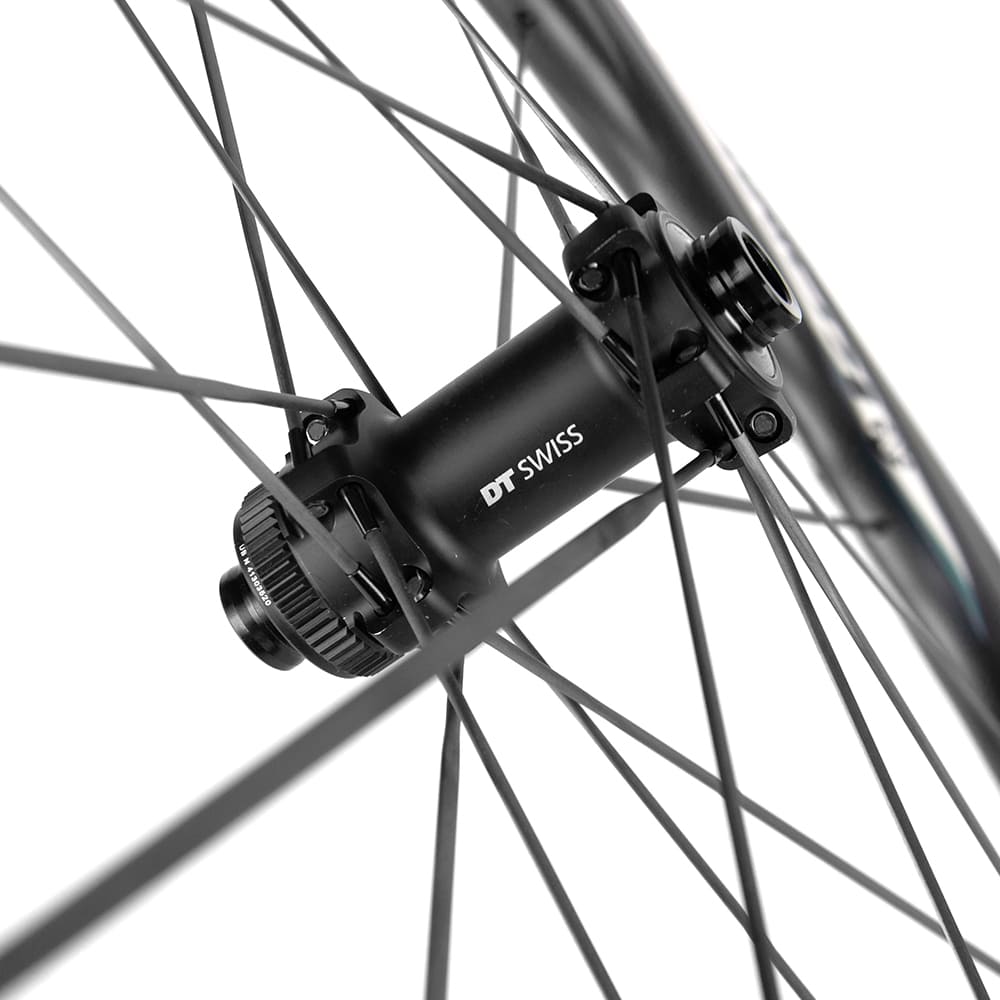

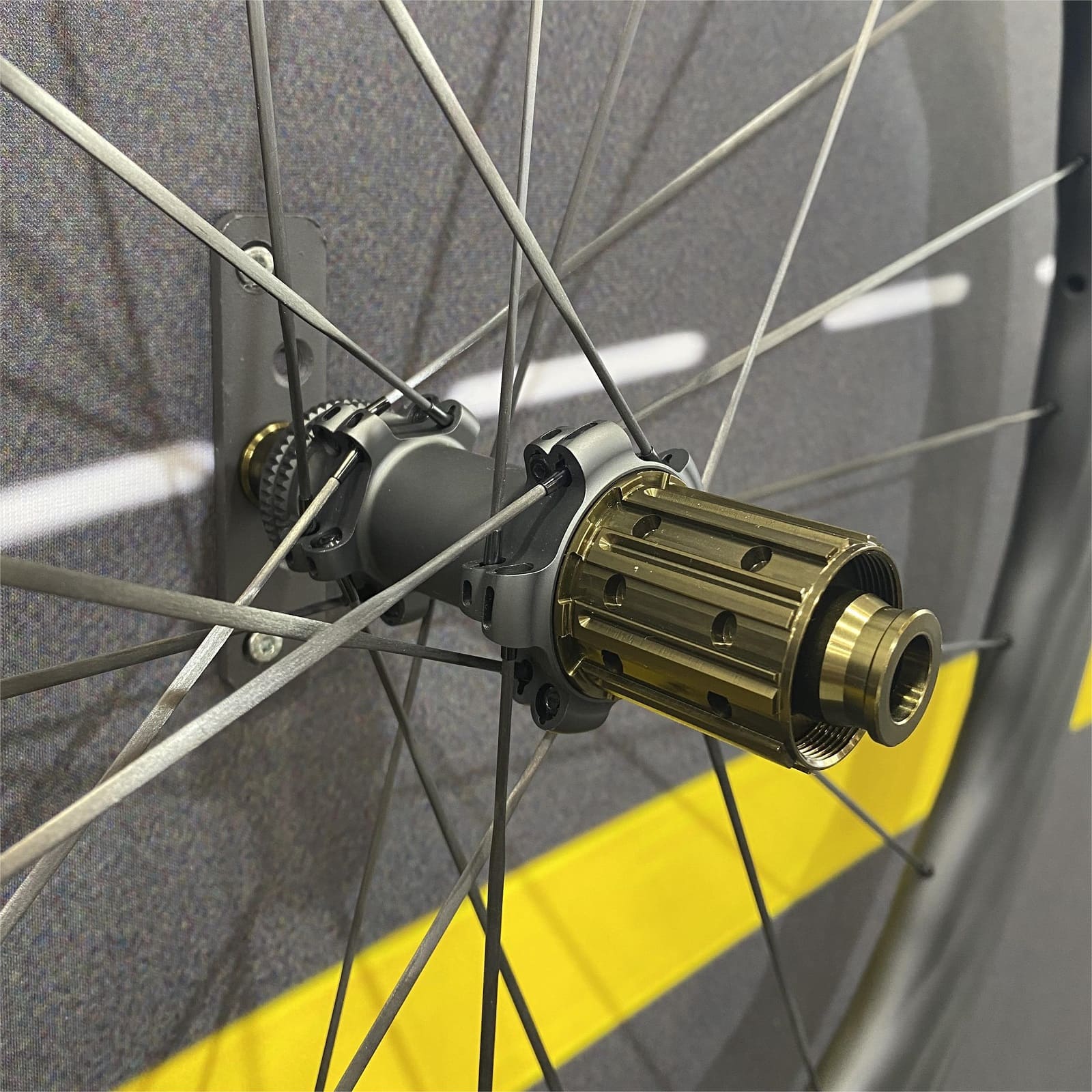

- Applicable to DT SWISS hub (model no. DT-CS068), as well as BYX hubs

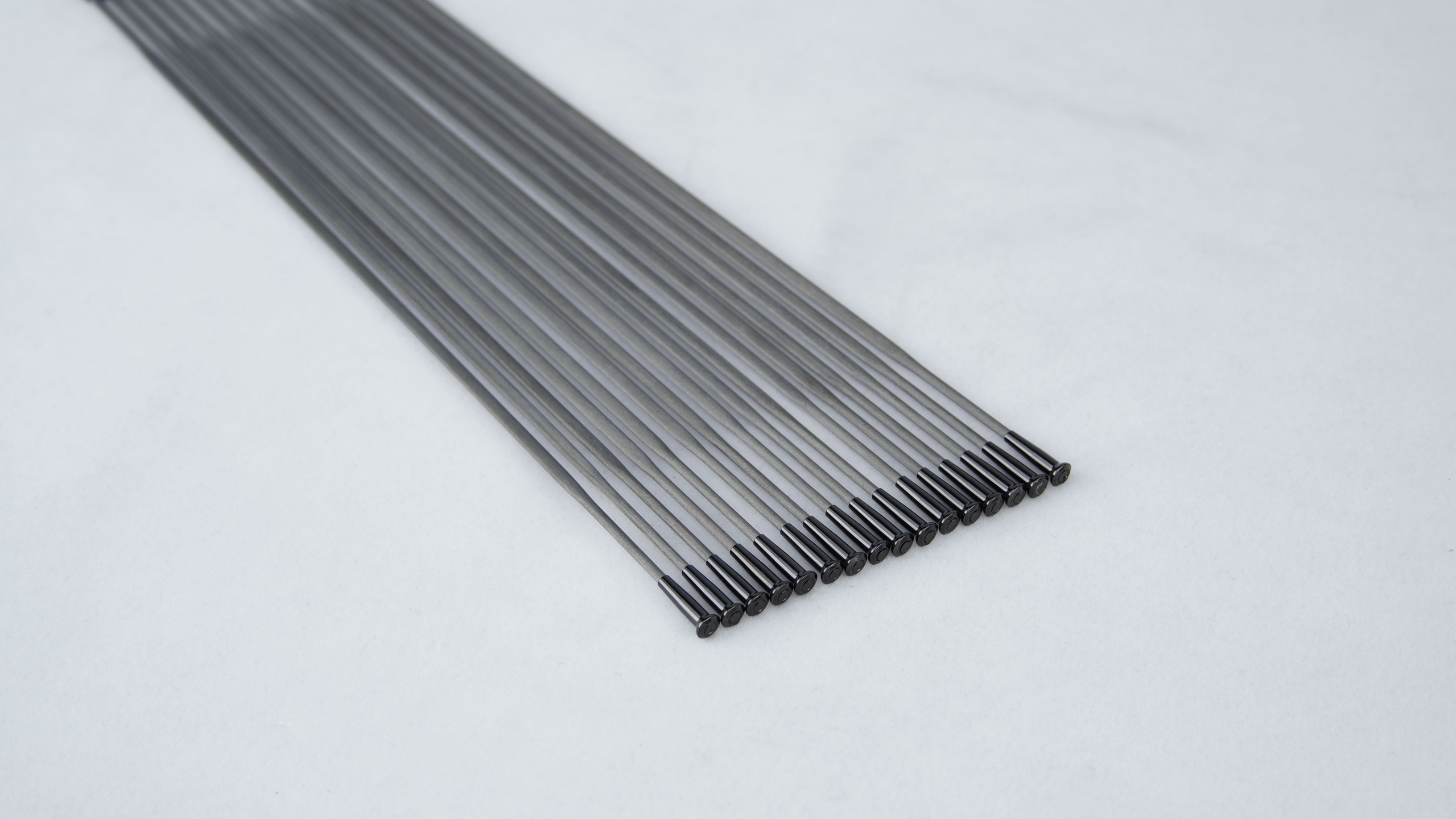

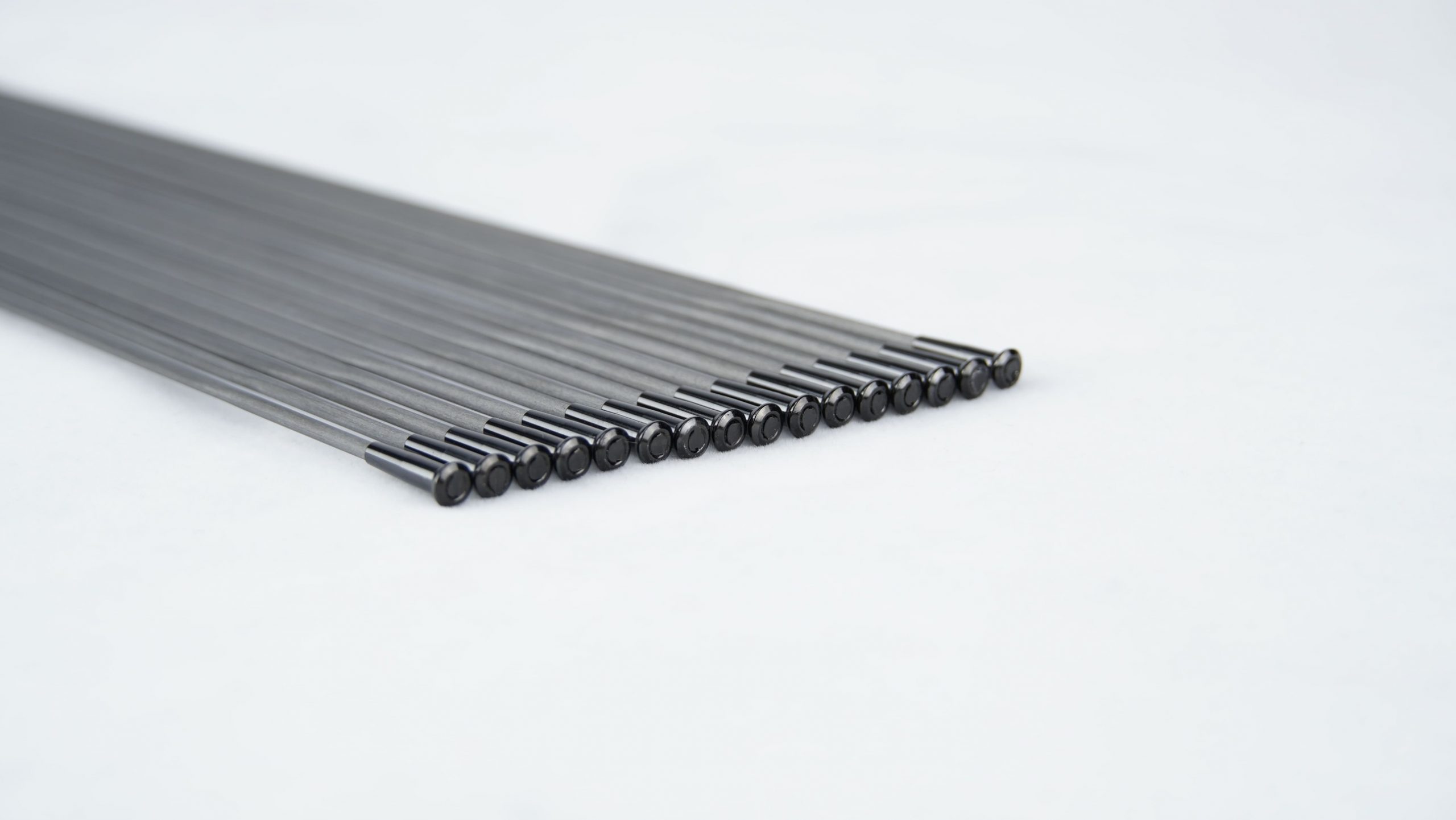

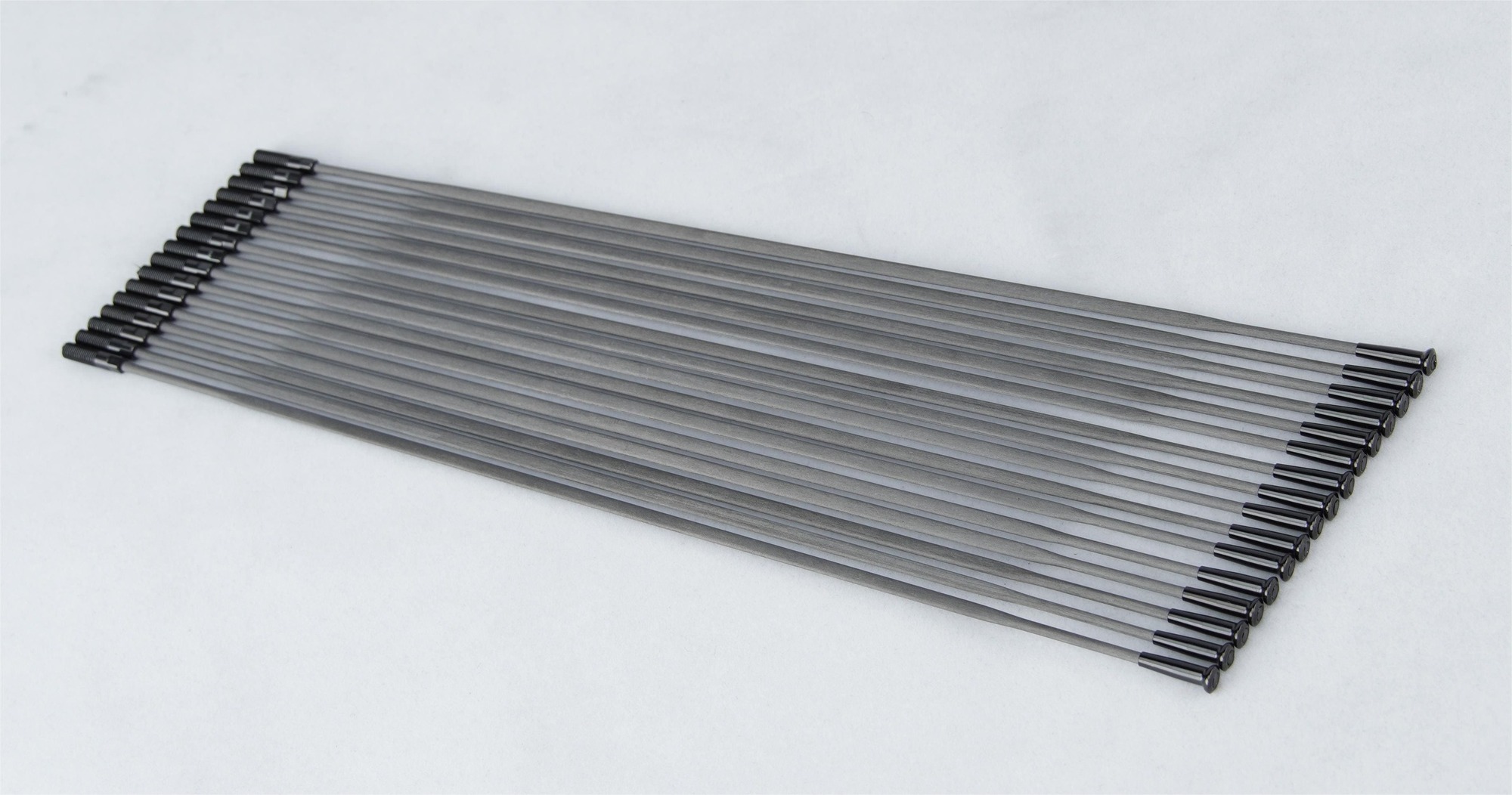

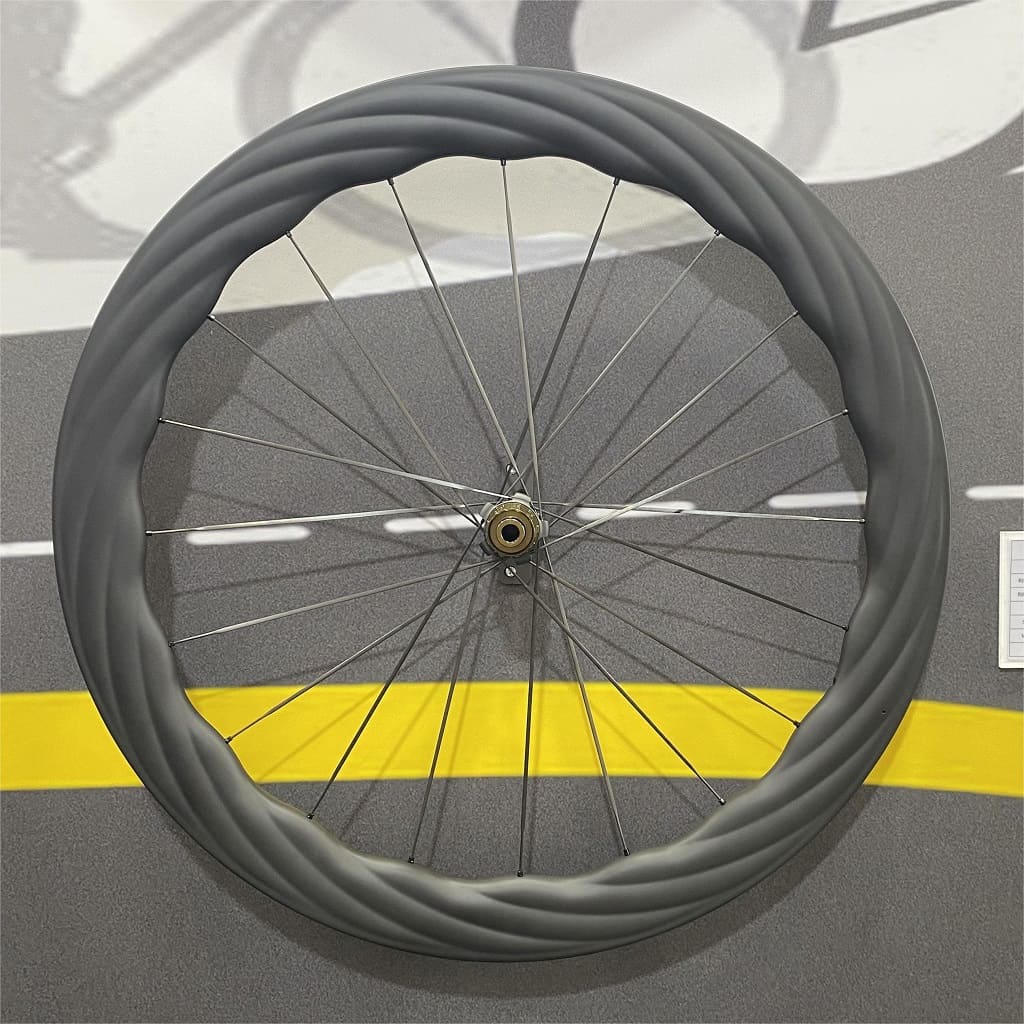

Carbon Spokes

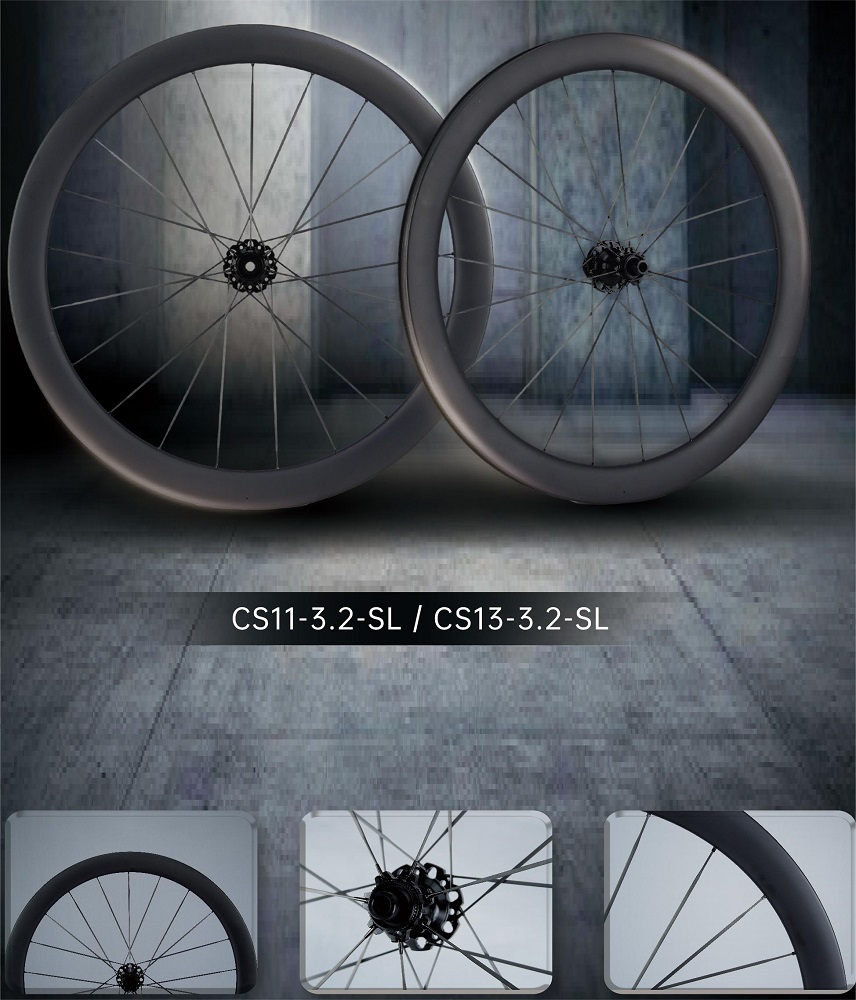

CS11-3.2-SL/CS13-3.2-SL Super Light

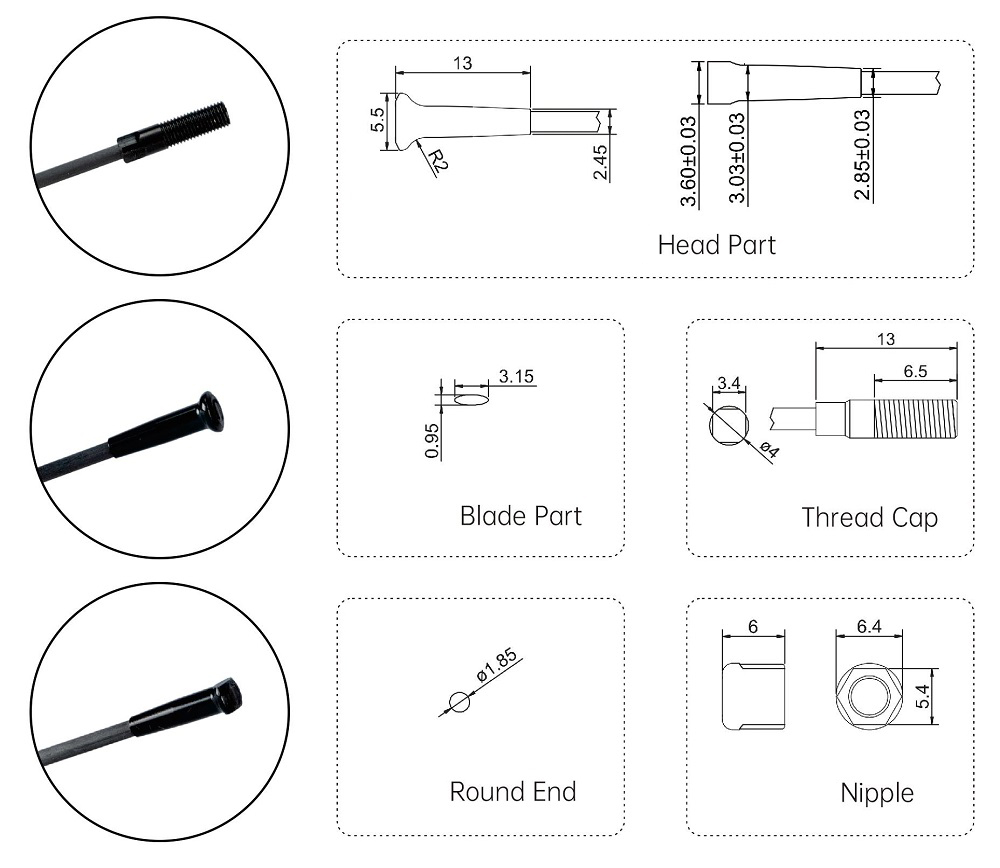

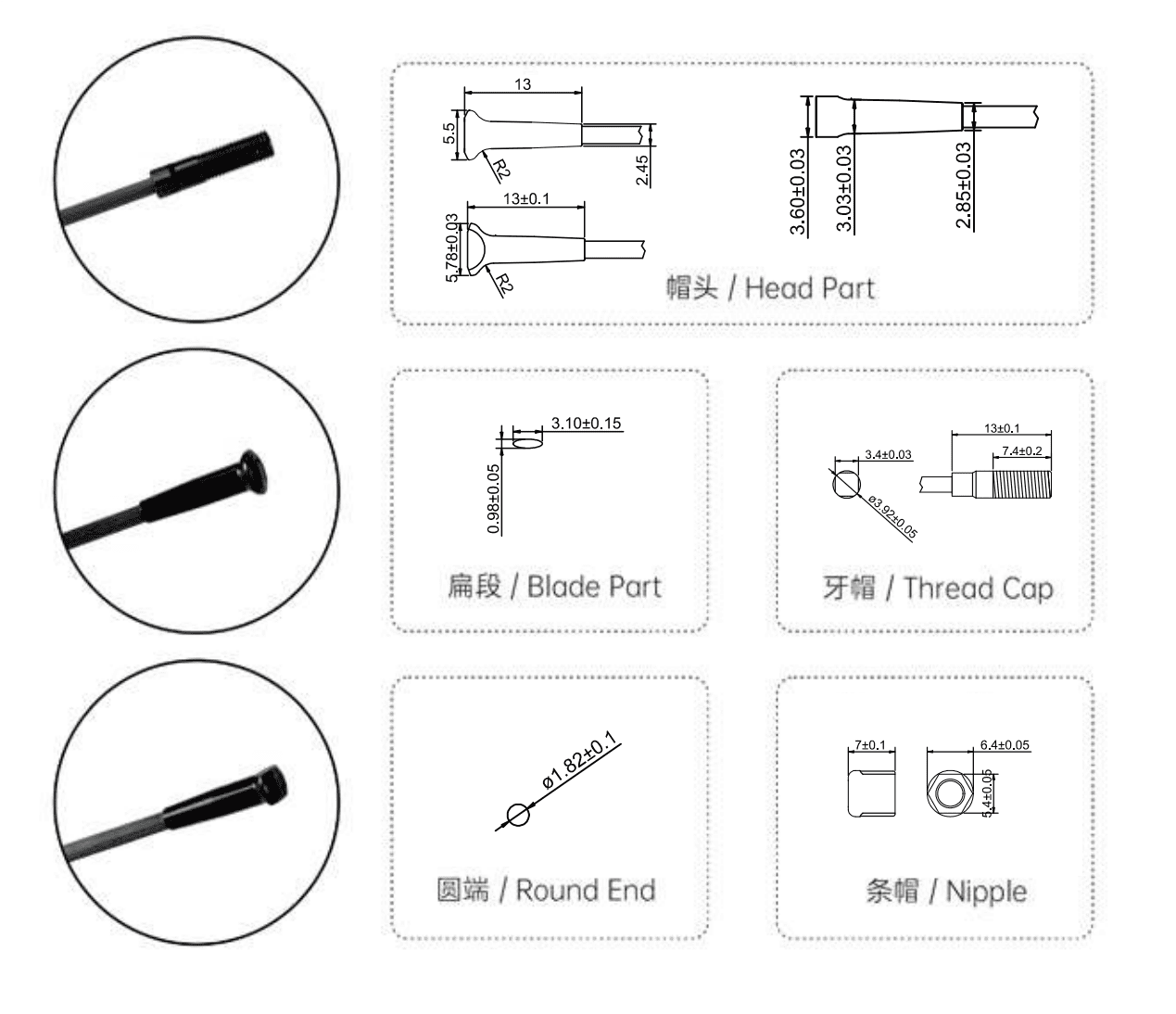

CS11-3.2-SL/CS13-3.2-SL Carbon Spoke Specifications
- Order Model: CS11-3.2-SL Round Head/CS13-3.2-SL T-head
- Weight Range: 1.79g, (2.1g including nipple)
- Length Range: 240mm-299mm
- Length Tolerance: ±0.5mm
- Width: 3.15±0.1mm
- Thickness: 0.95±0.05mm
- Diameter of Round End: 1.85±0.05mm
- Angle Deviation of T-head: ±10°
- Tensile Force In Destructive Testing: 350kgf
- Outgoing Inspection: 280kgf
- Lateral Rigidity Failure Value: 100kgf
